Description

Body: Stainless steel (304) construction.
Blender station: size G/N 1/2 Depth 150 mm,
open on top.
Ice ‎chest: ice ‎chest with insulation ‎‎40mm thickness with 2 partition & 3 slotted shelves
Dimensions (L x W x H): 450 x 400 x 250 mm
Hand wash basin: size G/N 2/3 depth 150mm, with ‎tap and drainer.
Condiment Bin: capacity (3) x 1/6 ‎G/N Depth 65 mm & at font.
Towel Rail: diameter 12 ‎mm, length 650 mm
Bottle Carrier: 500 mm width,1000 mm length.
Legs: Stainless Steel, (4)Legs (diameter 38mm), or (Dimensions 40 x 40mm with added (S) on the model), with adjustable Leveling feets.

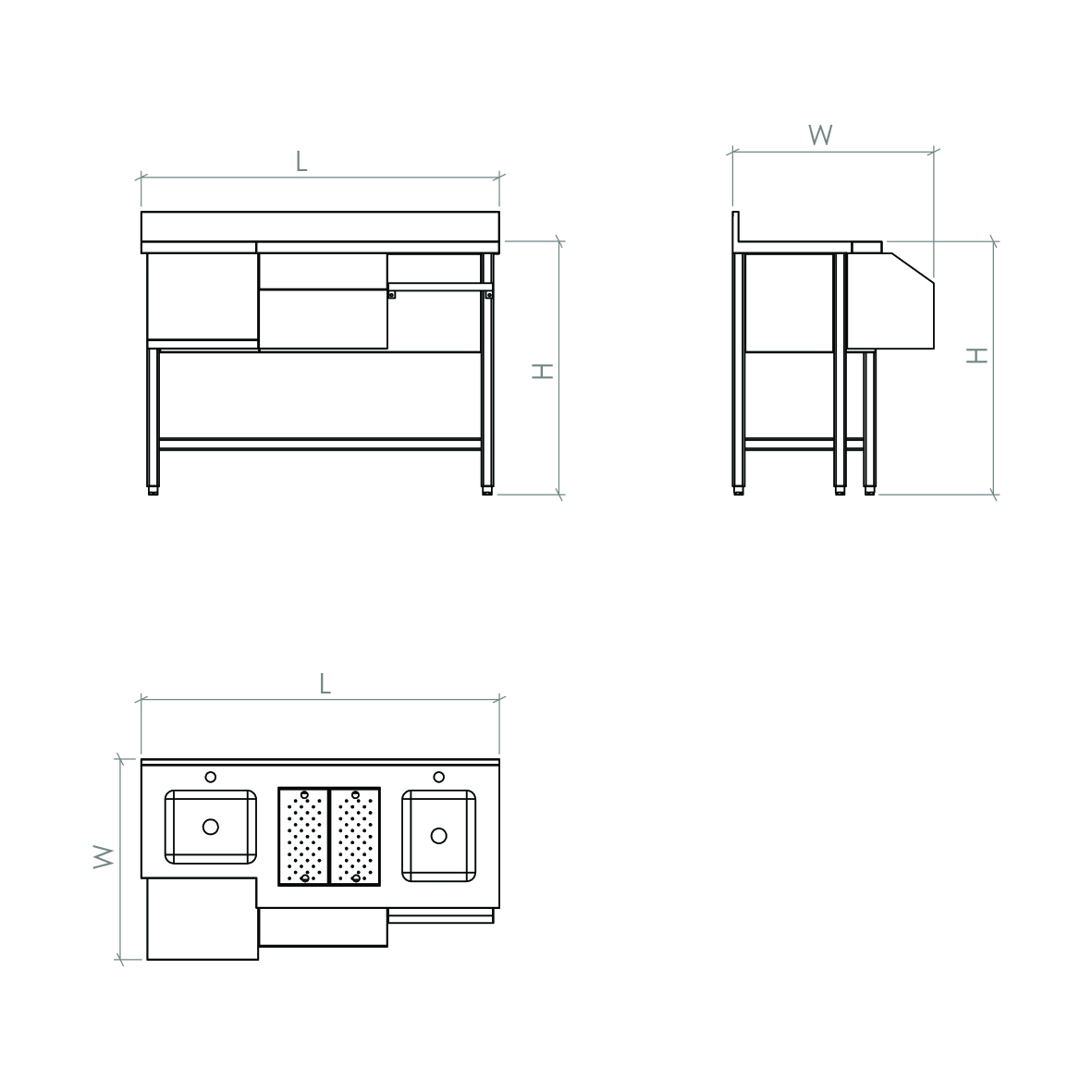

MODEL                     COCKTAIL Unit Dimensions (mm) L W H
MFP03-18                                1400x 600x 850
