Description

Body: Heavy duty steel construction, thermal enamel ‎painted steel interior, cladding enamel Painted steel exterior ‎except front Stainless steel & floor surface steel 3mm ‎thickness, available up-on request thermal bricks fire stone ‎‎(25mm thickness).‎
Door: Hinged door equipped with, big thermal glass window.‎

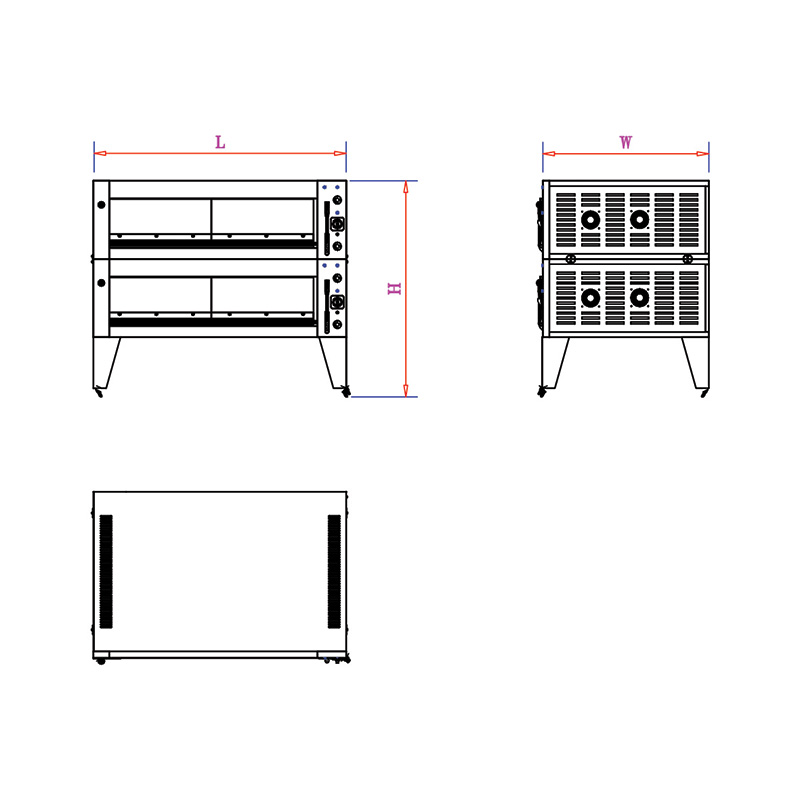

Unit Dimension: ‎(1580‎‏×‏‎ 1045 ‎‏×‏‎550 mm).‎
Electric source: 380 V/3Ph/50 HZ.‎
Control: Thermostatically Controlled (100:350°C) ‎Separately Controlled upper, surface,and floor
surface, per ‎deck, Equipped with Internal Lighting.
Chamber: Capacity (4)(400‎‏×‏‎600mm) baking trays,internal ‎dimensions (‎1230‎‏×‏‎ 830 ‎‏×‏‎220mm‎)
Stand: Painted Steel Construction-Height upon models
Available up-on request: steam Generator ‎
‎(1.65 KW/220V/1ph/50HZ) per deck & floor
surface thermal ‎brick fire stone dimensions ‎
(1220‎‏×‏‎ 820 ‎‏×‏‎25 mm)‎, steel or ‎stainless steel
Bakery Trays.

MODEL                                                       Dimensions (mm)         Capacity Tray(600 × 800 mm)     Electric Power (K.W)

Venice II-(4)(40 × 60)E
Single Deck Electric Bakery, Oven            1580x 1045x 1340              2                                                             12.0

Venice II-(2)(4)(40 × 60)E
Double Deck Electric Bakery, Oven            1580x 1045x 1500            4                                                              24.0

Venice II-(3)(4)(40 × 60)E
Triple Deck Electric Bakery, Oven              1580x 1045x 1800            6                                                             36.0
