Description

Body: Stainless steel (304) construction
interior & exterior with foam insulation,
density of 40 kg /m3, 75mm thickness,
Chamber: each equipped with stainless steel
sliding litter tray dimensions (680 × 1900 × 60mm),
chamber dimensions (750 × 2000 × 540mm) with
lockable door dimensions (820 × 600 × 75mm)
Legs: (4) Stainless steel legs diameter 60mm,
height 150mm with adjustable leveling feets.
Electric source: 220V/1Ph/50HZ.

Control: Digital control, Automatic defrost,
Indication lamp, ON/OFF switch, with
Audio-visual alarm, LED lighting.
Refrigeration System: Air cooled compressor,
220V/1ph/50HZ, Allowing inside temperature
(+3 : +8°C), thermostatically controlled,
Refrigerants R404 A, Heavy duty, High quality,
imported (condensing unit & evaporator).
Available up-on request: two Ranges & three
Ranges & stand-by Refrigeration unit.

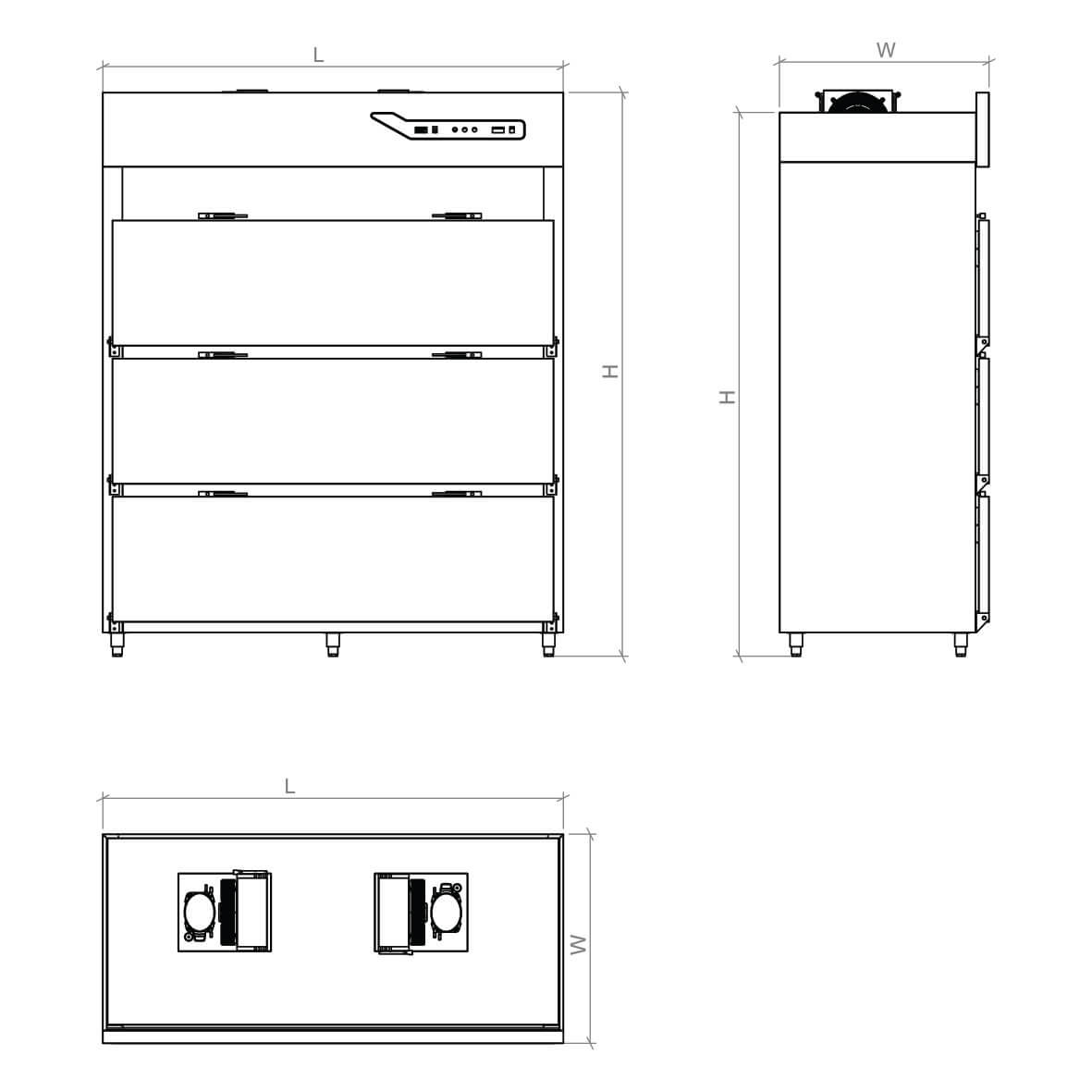

MODEL                                                                         Dimensions (mm) L W H

MMR-S-4D
two ranges, four individual doors,
upright mortuary Refrigerator                                     2000x 2300x 2100

MMR-S-6D
two ranges, six individual doors,
upright mortuary Refrigerator                                       2000x 2300 x2700

MMR-S-9D
three ranges, nine individual doors,
upright mortuary Refrigerator                                         3000x 2300x 2700
