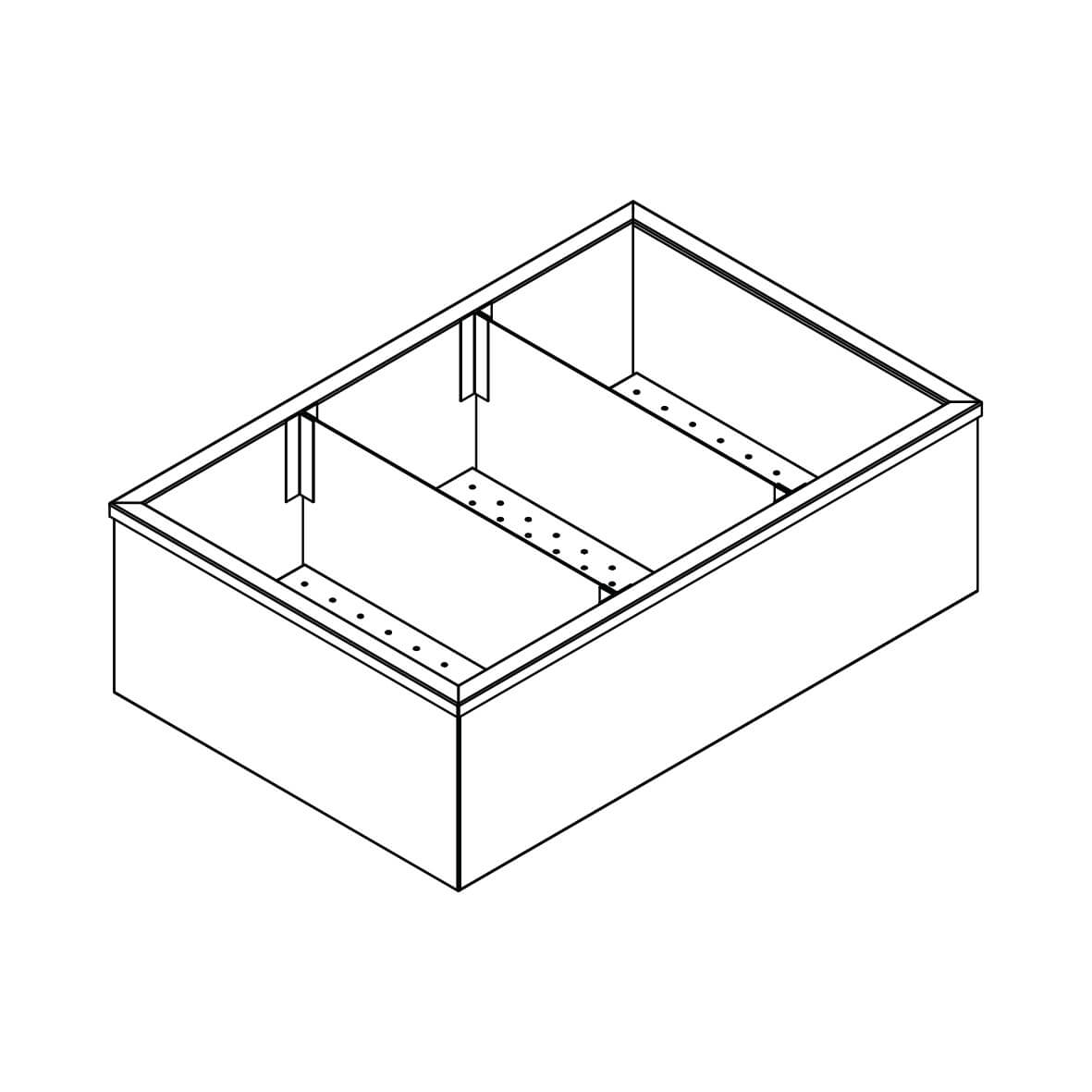

Description

Bowl: stainless steel (304) constriction, top
(1.5mm) thickness, bowl (1.25mm) thickness,
cooling pipe-work from copper tubes, foam
insulation, density (40 kg/m3), (40 mm)
thickness, static cooling , with (1inch) drain
valve equipped with stainless steel perforated
(CNC) sheet & with stainless steel cover
(1.5mm) thickness on top.
Available up-on request: Gastronome G/N
& Gastronome Lid.

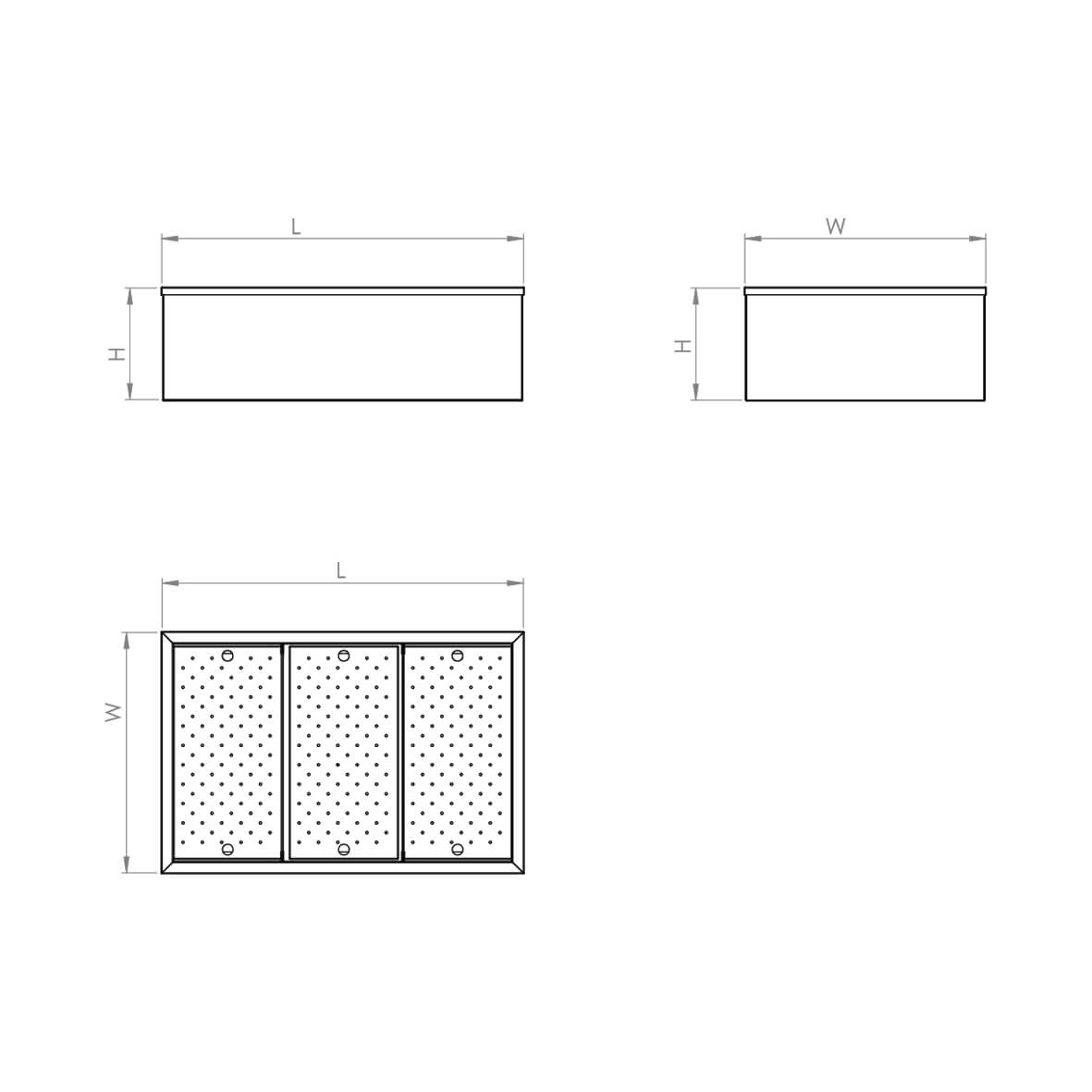

MODEL                                                                                                     Dimensions (mm)

L       W      H
MFS-03-09-N-44
DROP-IN ICE BIN CAPACITY (1) G/N 1/1                                          425X 630X250
MFS-03-09-N-77
DROP-IN ICE BIN CAPACITY (2) G/N 1/1                                          750X 630 X250
MFS-03-09-N-111
DROP-IN ICE BIN CAPACITY (3) G/N 1/1                                        1090X 630X 250
MFS-03-09-N-143
DROP-IN ICE BIN CAPACITY (4) G/N 1/1                                        1410 X630X 250
MFS-03-09-N-176
DROP-IN ICE BIN CAPACITY (5) G/N 1/1                                       1740 X630 X250
