Description

SPECIFICATIONS:
Body: Stainless steel (304) construction, pan and jacket, with normal cover with handel, heavy duty hinges, thermal insulation all over the pan, top 1.5mm thickness.
Electric Heater: high quality, electric elements immersed in the water inside jacket & Air heater used for in-direct heat modelsElectric source: 380V/3PH/50Hz
Control: thermostatically controlled, water
filling, water level, pressure relive, gauges, jacket safety control.
Electric accessories: heavy duty, high quality, (EGO- Germany).
Legs: (4) legs, stainless steel, 60 mm diameter, with Adjustable leveling feets.

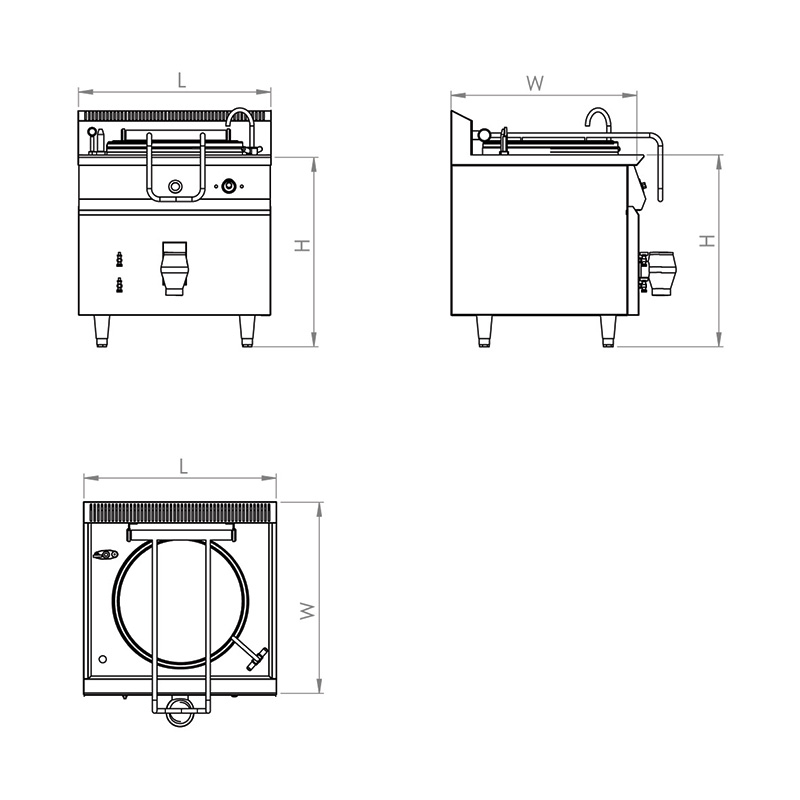

TECHNICAL DATA:

MODEL (MEBP01-100) – Pan Capacity  100(It) – Dimensions ( 900×900×900) – Electric Power 10.8 (KW).

MODEL (MEBP-I-01-100) – Pan Capacity  100(It) – Dimensions ( 900×900×900) – Electric Power 18.0 (KW).

MODEL (MEBP02-150) – Pan Capacity  150(It) – Dimensions ( 900×900×900) – Electric Power 10.8 (KW).

MODEL (MEBP-I-02-150) – Pan Capacity  150(It) – Dimensions ( 900×900×900) – Electric Power 18.0 (KW).

MODEL (MEBP-I-02-300) – Pan Capacity  300(It) – Dimensions ( 1100×1100×900) – Electric Power 27.0 (KW).
